serial number

project

unit

design value

1

Model Name

/

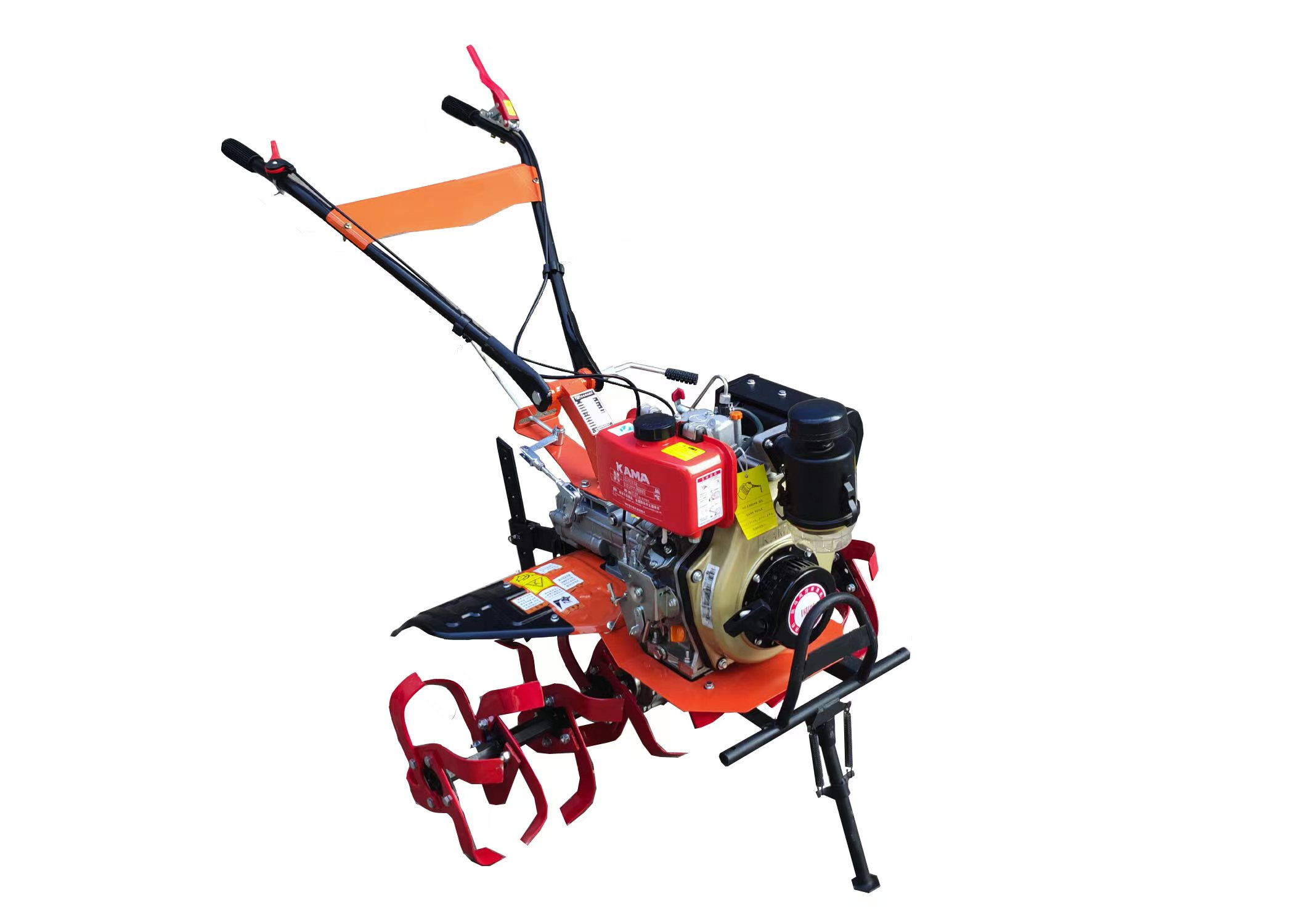

1WGCZ4.05-95-B micro tillage machine

2

Structure type

/

Handheld

3

Supporting engine model name

/

KM173FB diesel engine

4

Supporting engine manufacturers

/

Wuxi Huayuan Kaima Engine Co., Ltd.

5

Supporting engine calibration power

kW

4.05

6

Supporting engine calibration speed

r/min

3600

7

Supporting engine starting method

/

pull starter

8

Supporting engine fuel type

/

diesel fuel

9

Dimensions of the whole machine (length × width × height)

mm

1625×960×1000

10

Operating speed

m/s

0.1～0.3

11

Armrest Vibration

m/s2

≤50

12

job hour productivity

hm2/(h·m)

≥0.04

13

Fuel consumption per unit operating area

kg/hm2

≤30

14

Working width

mm

950

15

Engine output drive

/

Direct

16

Knife roller transmission mode

gear drive

17

Handle adjustment range (horizontal direction)

(º)

0

18

Handle adjustment range (vertical direction)

85

19

Design speed of knife roller

r/min

Fast gear: 154; Middle gear: 101; Slow gear: 80

20

The maximum turning radius of knife roller

mm

180

twenty one

The total number of knives installed on the knife roller

/

32

twenty two

Rotary blade type

/

dry land knife

twenty three

Main clutch type

/

friction plate

twenty four

master clutch status

/

Normally open
