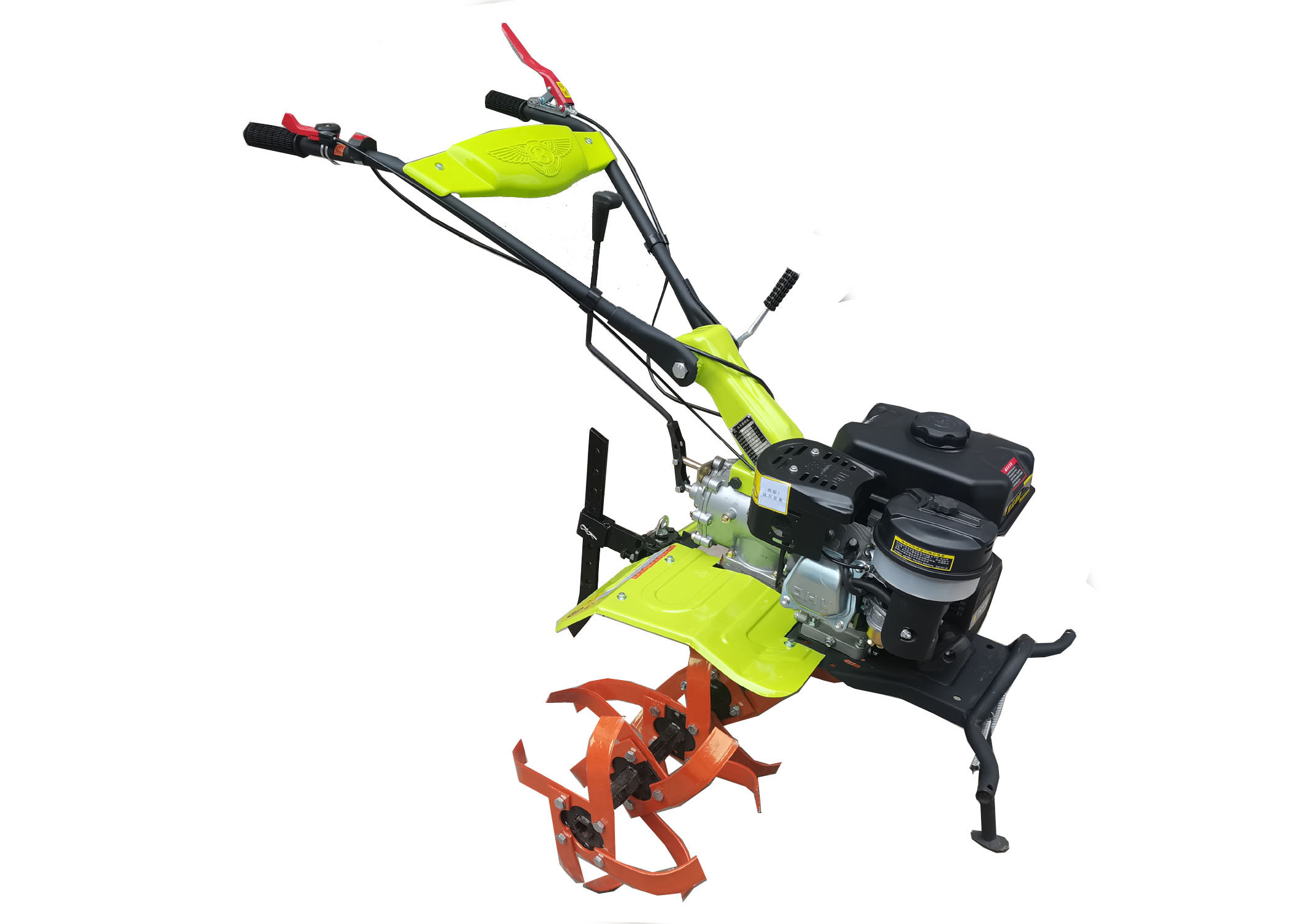

117 portable machine

serial number

     the project

   unit

design value

1

Model Name

/

1WG QZ4.0-90 Tiller

2

Structure type

/

Handheld

3

Supporting engine model name

/

FC170P gasoline engine

4

Supporting engine manufacturers

/

Chongqing Fuchai Power Machinery Manufacturing Co., Ltd.

5

Supporting engine calibration power

kW

4.0

6

Supporting engine calibration speed

r/min

3600

7

Supporting engine starting method

/

pull starter

8

Supporting engine fuel type

/

gasoline

9

Dimensions of the whole machine (length × width × height)

mm

1600 × 960×960

10

Operating speed

m/s

0.1～0.3

11

Armrest Vibration

m/s 2

≤50

12

job hour productivity

hm 2 /(h·m)

≥ 0.04

13

Fuel consumption per unit operating area

kg/hm 2

≤3 5

14

Working width

mm

900

15

Engine output drive

/

Direct

16

Knife roller transmission mode

gear drive

17

Handle adjustment range (horizontal direction)

( º)

0

18

Handle adjustment range (vertical direction)

85

19

Design speed of knife roller

r/min

Fast gear: 130; Slow gear: 93

20

The maximum turning radius of knife roller

mm

180

twenty one

The total number of knives installed on the knife roller

/

32

twenty two

Rotary blade type

/

dry land knife

twenty three

Main clutch type

/

friction plate

twenty four

master clutch status

/

Normally open
